Current Transformer In the field of distribution devices, relay protection systems, and electricity metering systems, Russian engineers have identified a key element that directly influences the safety and accuracy of the system:

Current transformer (CT)

However, not all current transformers are suitable for operating in harsh environments that require high-performance protection and reliability systems .

In this article, we will explain how to choose the right current transformer and why the CP series current transformers are designed for harsh environments.

Why is the choice of current transformer so crucial in electrical systems?

In the Russian electrical grid, current transformers are widely used in:

• relay protection system
• Energy metering (billing accuracy)
• SCADA systems and automated monitoring
• Current measurement in electrical panels

The main problems that engineers usually face:

Saturation of the current transformer can cause protection failures and system malfunction.

This is what the engineers were looking for:

• CT accuracy level
• Knee sprain
• load capacity
• Stability under extreme conditions

Designed specifically for extreme operating conditions (Russian market)

The environment in Russia is one of the most difficult in the world.

• low temperature
• high humidity
• industrial pollution

Therefore, engineers must:

Excellent insulation properties
Stable operation even under adverse conditions
Long-term reliability

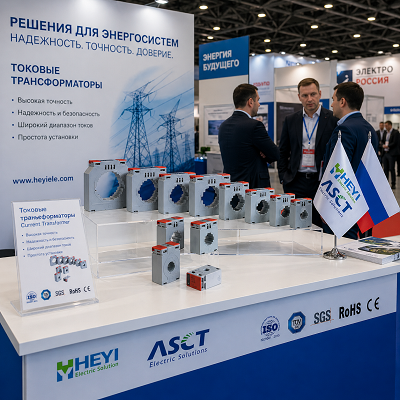

The CP series current transformers are designed for practical industrial applications.

The CP series low-voltage current transformers are designed for the following applications:

• Switching equipment manufacturers
• Power distribution systems
• Industrial automation projects

Key technological advantages

1. Wide current range, universal application.

• Main current: from 5 A to 3000 A
• Output current: 1 A / 5 A (standard).

Suitable for:

• Molded circuit breaker panel
• bus system
• Traffic Control Center

(According to the technical specifications: the CP series supports primary currents up to 3000 A )

2. High accuracy in billing and tracking.

• Accuracy class: 0.5 / 1.0
• Designed for energy measurement and monitoring systems.

Engineers often ask:

“Should I choose level 0.5 or level 0.5S?”

This product guarantees:

Stable measurements from 5% to 120% of nominal current

3. Excellent insulation and electrical safety.

• Nominal voltage: 0.72 kV
• Dielectric strength: 3.0 kV/1 minute
• Insulation resistance ≥ 100 MΩ

Meaning:

Industrial electrical panels offer a high level of safety.

4. Compact design: ideal for distribution cabinets.

• Compact size (ergonomic design)
• Panel/DIN rail/busbar mounting options

This could be useful for engineers:

Easy installation even in confined spaces
Flexible integration with various systems

5. Ensure system stability.

Designed specifically for the following uses:

• relay protection device
• Fault detection system

Main advantages:

A reliable output signal prevents the protection from being activated unnecessarily.

Quality certification: in accordance with international standards.

One of the most pressing problems for Russian engineers:

Certification and compliance

The features of the CP series CT scanners are as follows:

Complies with EN 61869-1 and EN 61869-2 standards
Tested in accordance with the Low Voltage Directive 2014/35/EU

This means:

Fully complies with international electrical safety requirements.

Common engineering problems (and how this computer solves them)

How to choose the CT coefficient?

Compatible with the CP series:

• Primary current from 5 A to 3000 A
• There are different design options (e.g., 100/5A, 500/5A, 1000/5A).

Can computed tomography be used in an industrial setting?

Yes:

• High thermal insulation
• Robust mechanical design
• Stable at humidity ≤85%.

Is this current transformer suitable for distribution devices?

Completely correct:

Designed specifically for panel, DIN rail and bus bar mounting.

Can it be used for relay protection?

Yes:

Designed specifically for surveillance and protection systems.

A typical Russian app

This type of scanner is ideal for:

• manufacturers of electrical switchgear
• electrical distribution cabinet
• industrial automation systems
• energy monitoring equipment
• engine management system

Why did the engineers choose this particular current transformer?

Because it allows us to solve practical problems:

Stable measurements under varying loads
Reliable output protection signal
Compact design for modern switching equipment
Complies with international certification standards
Wide current range (5 A – 3000 A)

Conclusion: Choosing the right computed tomography method is crucial.

In modern energy systems:

Even minor errors in current measurement can cause serious system failures.

Therefore, Russian engineers prioritize the following tasks:

• precision
• Stabilize
• reliability

If you participate in the design of switchgear or electrical systems:

Choosing a tested, certified, and stable power transformer is essential.

Technical support contact information

If you need it:

• CT Select Assistance
• Custom specifications
• Project Comparison

We will help you select the most suitable current transformer for your application.
