How Development of new energy charging piles in Türkiye?



In recent years, Turkey has become an active participant in the global transition to sustainable transportation. The construction of electric vehicle (EV) charging infrastructure is key to this transition. With the increasing emphasis on reducing carbon emissions and promoting clean energy, Turkey is vigorously promoting EV-friendly development by establishing charging stations across the country.



Infrastructure expansion:

One of the key drivers of the surge in EV adoption is the continued expansion of charging infrastructure. Cities such as Istanbul, Ankara, and Izmir are witnessing a surge in public charging stations, which provide EV owners with more convenient ways to charge their cars. These charging stations are strategically located in city centers, business districts, and along major highways, making long-distance travel easier for EV users.



Technological advancements:

The development of electric vehicle charging stations in Turkey focuses not only on quantity but also on quality. Technological advances in charging infrastructure are speeding up charging and improving user experience. Fast charging stations equipped with the latest technology are becoming more and more popular, which not only significantly shortens charging time but also alleviates the concerns of electric vehicle owners about range.



In order to cater to the development of electric vehicle charging stations in the Turkish market, Heyi Electric has specially developed corresponding products. We have the most comprehensive charging pile solutions to escort the construction and maintenance of charging piles.

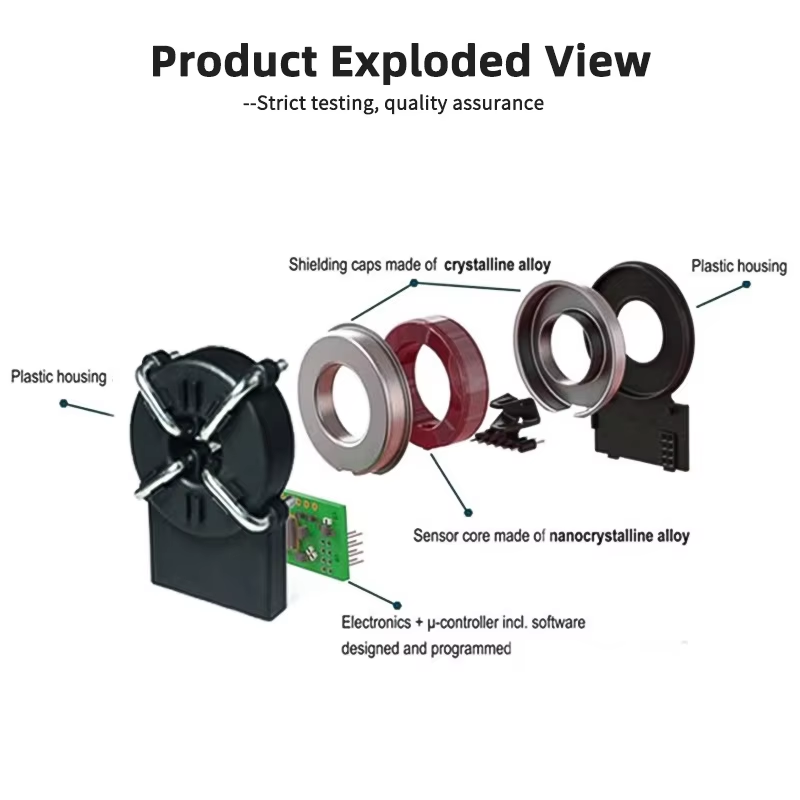

HYCA-01, a type B residual current sensor specially designed for charging piles



The HYCA-01 from Wenzhou Heyi Electrical Co., Ltd. is a precision residual current detection module designed for safety-critical applications. This compact PCB-mounted solution offers comprehensive AC/DC leakage current monitoring with advanced self-test capabilities, making it particularly suitable for electric vehicle charging infrastructure and industrial power systems.

HYCA-01 Advantages:

• Dual Output Indication: Features both X6-OUT (DC trip) and X30-OUT (AC trip) for comprehensive fault detection
• Precision PWM Output: Provides 8kHz PWM signal with 3.33%/mADC resolution (0-30mADC range)
• Advanced Self-Test: Integrated calibration and verification system with simulated 6.53mADC test current
• Hysteresis Protection: Intelligent flip thresholds (100% trip/55% recovery) prevent signal oscillation
• Compact Integration: PCB-mounted design optimizes space utilizatio





HYCA-01 Recommended For:

• Ground fault detection in industrial equipment
• Leakage current monitoring in power converters
• Compact EV charging stations (motorcycles, bicycles)
• Systems requiring precise DC residual current measurement









HYCA-01 Technical Specifications:

Electrical Characteristics

• Supply Voltage:85V – 5.15V (5V typical)
• Power Consumption:≤110mW (static)
• Output Drive Capability:>100mA
• Power Supply Ripple:≤150mV (LDO recommended, e.g., LP2985A-50DB)





Current Ratings

• Primary Nominal RMS Current:
• Residual Current Detection Range:





Output Signals

• X6-OUT (DC Trip Output):Open-drain, high-impedance when DC > 4.5mA or system fault
• X30-OUT (AC Trip Output):Open-drain, high-impedance when AC > 22mA or system fault
• PWM Output:8kHz signal, 3.33%/mADC duty cycle resolution (0–30mA range, ±0.5mA accuracy)
• Error Output:Open-collector, high-impedance on system fault







Environmental & Reliability

• Operating Temperature:-40°C to +85°C
• Storage Temperature:-20°C to +65°C
• Operating Altitude:Up to 4000m
• Design Life:20 years (theoretical)







Safety & Insulation

• Electrical Clearance:
• Creepage Distance:







Timing Characteristics

• Response Time (Trip Times):







Self-Test & Calibration

• Test Input (TEST-IN):Triggers zero-point calibration and self-test (requires 50–100ms pulse)
• Simulated Test Current:53mADC (generated internally for validation)
• Hysteresis Thresholds:







Mechanical & Installation

• Mounting:PCB-integrated design
• Pin Count: 8-pin interface (including NC pin)







Compliance & Standards

• Standards: IEC 62752, IEC 62955 (RDC-PD)
• Environmental: RoHS/REACH compliant



The surge in electric vehicle charging stations in Turkey fits in with the country’s broader environmental goals. By promoting electric vehicles, Turkey aims to reduce air pollution and dependence on fossil fuels, thereby creating a cleaner, healthier environment. The uptake of electric vehicles and the expansion of charging infrastructure play a key role in achieving the country’s climate goals.
