HYCA type AC DC leakage current sensor

Introduce:

HEYI Electrical company ASCT brand new product  HYCA type AC DC leakage current sensor is a Leakage Protection Residual Current sensor specifically developedfor EV-charging providing all-current sensitivity. Charging of electric vehicles ata standard wall socket or a wall box requires protection devices against DC faultcurrents to avoid electric shock. Installed type A residual current circuit-breakers(RCCBs) are unable to identify and deactivate DC fault currents.

Features:

  • Small volume and footprint for integration into compact IC-CPD.
  • Avoids hazardous situations with DC fault currents.
  • Protects RCCB type A from saturation.
  • Saves costly type B RCCD.
    Volume optimized.
  • AC/DC-current sensitivity at low cost.
  • Protects RCCB type A from saturation.
  • Self-monitoring and test functions.
  • Robust mechanical design suitable for IC-CP.

Technology:

  • ault current detection according to IEC 62752 or UL 2231.
  • Frequency range DC up to 2 KHz.
  • Load current up to 80 Arms (1-phase) or 3 x 32 Arms (3-phase).
  • Switching output for 6 mA DC and 30 mA AC (acc. to IEC 62752)
  • Integrated self-monitoring and test functions.
  • Measurement resolution of 0.2 mA.
  • Variants with pass through opening or with integrated primary conductors.
  • Differential current range 0~300 mA.
  • Robust mechanical design suitable for IC-CPD environmental requirements (e.q. drop test)
  • Widely usable in harsh electronic environment (e.g, resistant to external maanetic fields)
  • The sensor can trigger an automatic shut-off in case ofhazardous electrical faults (DC and AC) according to lEC 62752 or UL2231.

Standard:

Tecnial data

Pin number Symbol Pin typ Functions
 1 Error  / Open-collector output pin for indicating the system
fault condition.
When no system fault, this pin will be conducted
to GND.
When system fault occured, this pin will be highimpedance.
2 TEST-IN OUTPUT When this pin been conducted to 0VDC, module will calculate the zero-point-drift and store the value to register in the MCU to finish the callbration operation.
After calibration finished, system will internally generate simulated residual current, to check whether module can do the correct response.During this procedure, X30-OUT & X6-OUT will turn to highimpedance if module working correct.
Attention:
When using the TEST-IN function, the main circuit must be cut-off to ensure no r esidual current flow When using this pin function, please follow the time diagram figure.
3 X6-OUT OUTPUT If residual current exceeds pre-set DC trippling value(for this module typically 4.6 mADC),this output is in a high-impedance state When the total residual current r.m.s exceeds pre-set all-current trippling value, this output is in a highimpedance state
When system-fault happens, this output is in a highimpedance state.
For other normal conditions, this output is in a low
level(GND)
4 X30-OUT OUTPUT If residual current exceeds pre-set all-current tripping value (for pure-AC typically 23 mAAC), this output is in a high-impedance state.
When system-fault happens, this output is in a highimpedance state.
For other normal conditions, this output is in a low
level(GND)
5 GND POWER Ground
6 VDD POWER Module power supply, standard voltage 5VDC Voltage input required to be within 4.85~5.15VDC, power output capability > 100mA Power supply ripple ÿ 150mV (It is suggested to use LDO circuit, for reference IC LP2985A-50DB)
7 PWM OUTPUT Indicating DC residual current component with duty-cycle with 8kHz PWM Output resolution = 3.33%/mADC from 0~30mADC
Accuracy about ±0.5mA
8 N.C. Nout used
Trip-Current (residual current related characteristics.
Wav. Freq. Min. Typ Max. Unit
AC 50Hz 20.0 23.0 26.0 mA
A0° 50Hz 11.0 15.0 30.0 mA
A90° 50Hz 10.0 20.0 30.0 mA
A135° 50Hz 10.0 24.0 35.0 mA
2PDC 50Hz 3.5 5.0 7.0 mA
3PDC 50Hz 3.1 4.6 6.2 mA
S-DC – 3.0 4.6 6.0 mA
Trip-Time (residual current related characteristics
Wav. Freq. Current TYP. Unit
AC 50Hz 30mA 25 ms
AC 50Hz 60mA 16 ms
AC 50Hz 150mA 15 ms
AC 50Hz 5A~100A 8.5 ms
A0° 50Hz 42mA 25 ms
A0° 50Hz 84mA 18 ms
A0° 50Hz 210mA 10 ms
A0° 50Hz 42mA+6mADC 18 ms
A0° 50Hz 84mA+6mADC 15 ms
A0° 50Hz 210mA+6mADC 15 ms
S-DC 6mA 48 ms
S-DC 60mA 16 ms
S-DC 300mA 8.5 ms
2PDC/3PDC 50Hz 60mA 20 ms
2PDC/3PDC 50Hz 120mA 25 ms
2PDC/3PDC 50Hz 300mA 12 ms
2PDC/3PDC 50Hz 5~50A 12 ms
Electrical/Reliability Characteristics
Working Temperature 40℃~105℃
Storage Temparature 40℃~105℃
Supply Voltage(VDD) 4.85~5.15 VDC
recommend 49*51 VDC
Static Power Consumption 110mW
Clearance
(Primary-Primary/Secondary)		 ≥6.5mm
≥10mm
Creepage
Primary-Primary/Secondary)		 ≥8mm
≥10mm
Voltage Input, low level 0~0.6VDC
Voltage Input, high level 4.2~5VDC
FIT 25℃= 48.755
80℃ = 213.13
Designed Life ≥20 years
Working Altitude ≤4000m

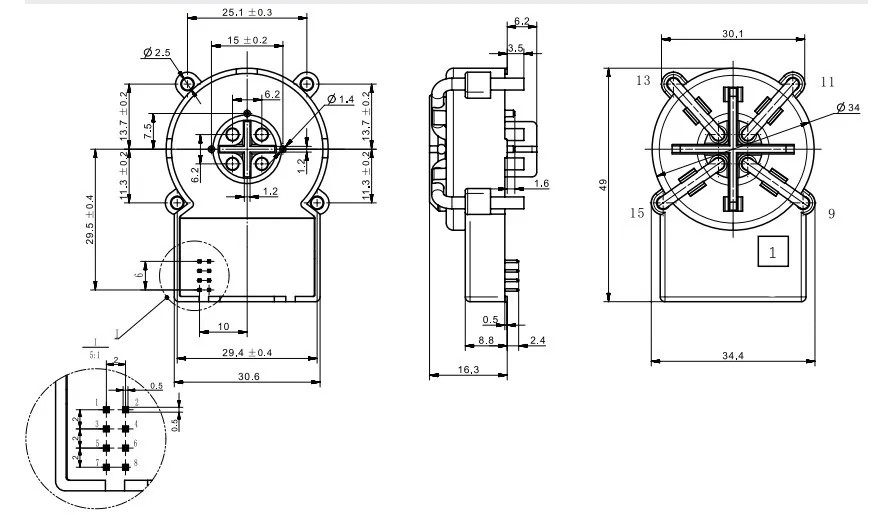

Drawing

Diagram
