UK-65 Small Toroidal Split Core Current Transformer decentralized current transformer is an advanced current measurement device design to provide users with high-precision, high-reliability current monitoring and protection services. First of all, it adopts a unique opening and closing design, which makes installation and maintenance extremely easy. Whether in a small space or in a complex power system, the UK-65 Small Toroidal Split Core Current Transformer decentralized current transformer can easily cope with it. In addition, it has high sensitivity and stability, and can accurately detect current changes, thereby providing strong guarantees for the safe operation of the power system. At the same time, this transformer also has excellent durability and can operate stably for a long time under various harsh environmental conditions. In short, the UK decentralized current transformer has become the only choice for measurement and protection equipment in the power industry through its innovative design and excellent performance.

In addition, the UK split-core current transformer also has strong environmental adaptability and can work normally in harsh environments such as extreme temperature, high humidity, and strong electromagnetic interference. This makes it not only suitable for ordinary industrial and commercial applications, but also plays an important role in outdoor power facilities and special projects in extreme environments. Its compact design and efficient current conversion capability also make it an ideal accessory for intelligent equipment in modern power systems.

More importantly, the UK split-core current transformer has strong compatibility and can be seamlessly integrated with various types of power monitoring equipment and protection devices to form a complete power monitoring and protection system. This integration capability not only improves the overall reliability of the system, but also simplifies the design and installation process of the system, further reducing the cost of use. In short, the UK split-core current transformer has become an indispensable and important equipment in modern power systems with its excellent performance, ease of use and high environmental adaptability.

FAQ

1. Can the UK-65 split core current transformer be installed on an existing cable or busbar?

Yes. The UK-65 has a split core design, allowing it to be fitted around an existing conductor without disconnecting the conductor for installation. Its double screw fastening helps secure the core after positioning. Installation and any work on the secondary circuit should follow the site’s electrical safety procedures.

2. What cable or busbar size can fit through the UK-65?

The UK-65 is designed with a wide inner window for cables or busbars. To confirm fit, please provide the cable’s outside diameter or the busbar’s width and thickness, including insulation, along with the available space in the panel. We can then check the UK-65 dimensional drawing against your installation.

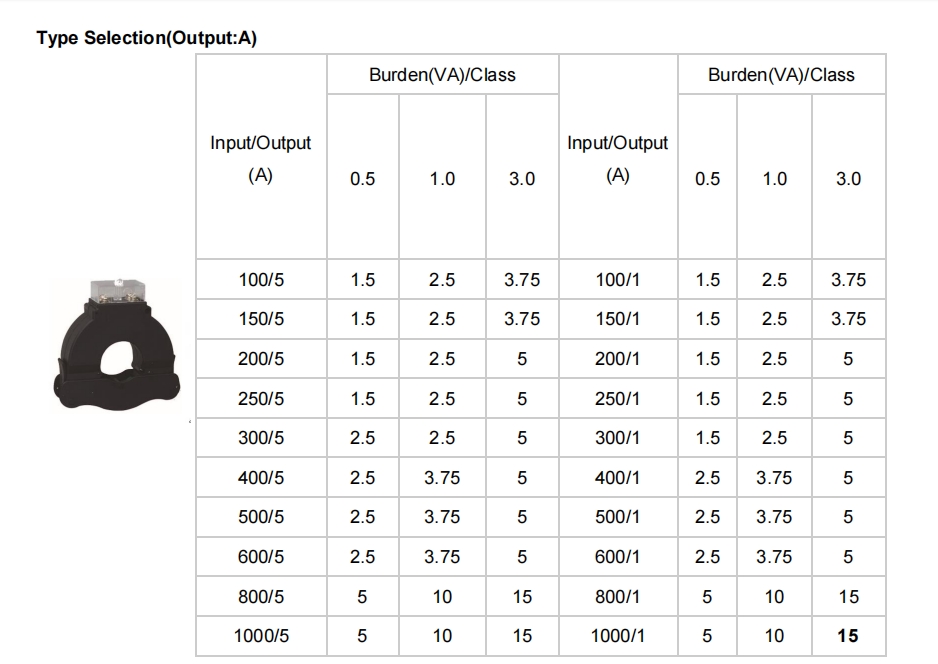

3. Which current ratios and secondary outputs are available for the UK-65?

The published UK-65 range covers primary ratings from 100 A to 1000 A, with 1 A or 5 A secondary output options. Select the ratio according to the circuit’s operating current and the input rating of the connected meter or monitoring device.

4. What accuracy class and rated burden does the UK-65 offer?

The product table lists Class 0.5, Class 1.0 and Class 3.0 options. The available rated burden varies by current ratio and accuracy class, so it should be checked for the exact model ordered. When selecting a CT, include both the meter burden and the secondary cable burden in the calculation.

5. Is the UK-65 suitable for energy metering and protection relays?

The UK-65 can be considered for current measurement and energy monitoring when its ratio, accuracy class and burden meet the project requirements. Protection relay suitability requires a separate technical check: please provide the required protection class, relay details and fault current requirements before selecting a CT for that application. The published UK-65 table does not specify a protection accuracy class.
