KS9 oil immersed mine transformer

Introduce:

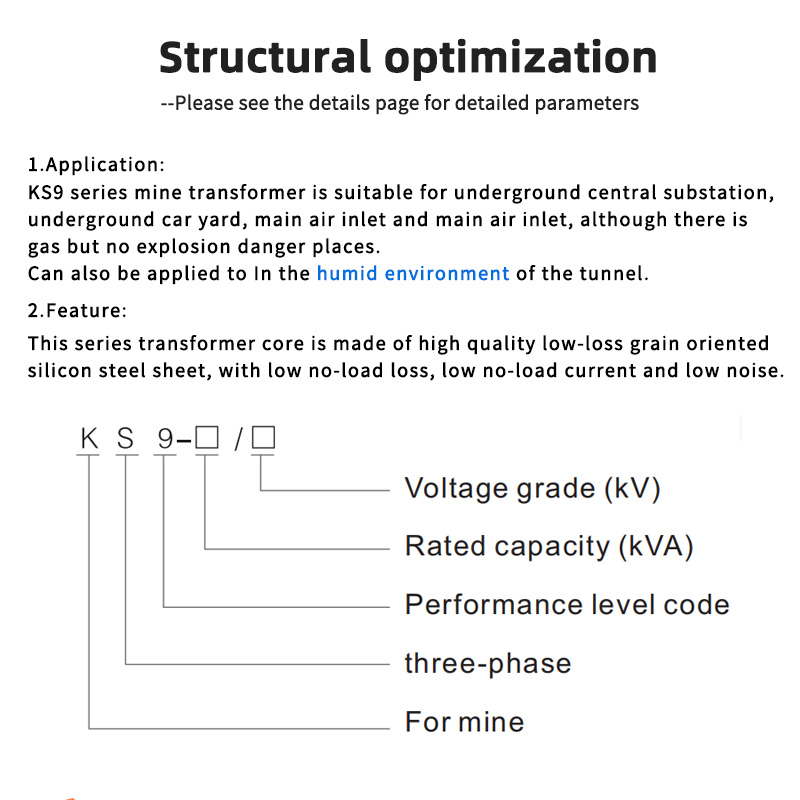

Oil-immersed transformer is the transformer coil and magnetic core immersed in special transformer oil.KS9 series oil immersed mining transformer is suit for central substation, mine stop, general wind dypass and main wind dypass which has gas but has no expiosion danger,it is for the moisture enviroment.too.

Features:

It can also be heat dissipation and can make the coil isolated from the air to prevent the moisture in the air from causing corrosion to the magnetic core of the transformer, but also can play a certain role in arc extinguishing

this series transformer adopt silicon steel iron corewhich in made of excellent low loss crystal granule.they have the merit of low no-load current and low noise.

How to deal with insulation damage of oil-immersed transformer?
1, the operation of the transformer should check and parts of the oil seepage phenomenon, transformer body no water, in order to prevent water and air into the transformer caused by transformer insulation damage.
2. The oil seal of the respirator of the transformer should maintain a certain oil level and keep smooth, and the desiccant should be kept dry to ensure good hygroscopic effect.
3. Check regularly to ensure that the explosion-proof film and safety pressure relief valve of the transformer are intact to prevent direct connection with the air, resulting in the increase of the water content of the transformer oil and the deterioration of the insulation performance of the oil.
4. When feeding the transformer, attention should be paid to the qualified oil quality in the oil storage cabinet to prevent the deterioration of the oil quality caused by the oil filling, and the bottom of the transformer is prohibited from feeding the oil tank, to prevent the impurities at the bottom of the air and the tank from entering the transformer body, especially to prevent metal impurities from entering the transformer.

Technical performance parameters
rated
capcity
(KVA)
high
pressure
(KV)
Connection
Type
short
circuit
impendance(%)
wear and tear(W) no-load
current
(%)
weight(KG) Overview dimensions
LWH
Gauge
Vertical
horizontal
no-load Loadloss(75℃) Body weight Heavy oil gross weight
50 High pressure
6.6
6.3
6
Low pressure
0.693~0.4
Yy0
or
Yd11
4.0 170 870 2.0 248 110 410 1105*770*1185 660/630
80 240 1250 1.8 335 130 570 1100*730*1300
100 290 1500 1.6 360 140 610 1150*770*1245
160 390 2200 1.4 505 190 790 1230*830*1420
200 470 2600 1.3 585 210 1050 1320*850*1410
250 560 3050 1.2 715 235 1150 1330*860*1530
315 670 3650 1.1 820 255 1270 1500*960*1610
400 800 4300 1.0 980 290 1580 1550*960*1610
500 960 5100 1.0 1155 335 1790 1550*960*1650 600/790
630 4.5 1150 6200 0.9 1430 440 2200 1680*980*1730

Diagram
