K11TP Type Current Sensor

Introduce:

K11TPseries dismountable hall effect current Sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC currents.

Directions for use:

  • When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor) .
  • Customs can adjust output amplitude of the sensor by needs.
  • Custom design in the different rated input current and the output voltage are available.

Applications:

  • AC variable speed drives
  • Static converters for DC motor drives
  • Variable speed drives
  • Power supplies for welding applications
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
Type K11TP-20A K11TP-50A K11TP-100A K11TP-150A K11TP-200A Unit
Rated current(Ipn) ±20 ±50 ±100 ±150 ±200 A
Rated output @Ip=±Ipn                2.5±0.625Vor1.25Vor2V V
Zero voltage @Ip=0                     2.5 V
Supply voltage 5 V
Power Consumption ≤20 mA
Zero offset voltage @Ip=0                       ±20 mV
Magnetic offset @Ip=±Ipn-0                  ±20 mV
Offset drift @ -40~+85℃               ≤±0.5 mV/℃
Output drift @ -40~+85℃               ≤±0.5 mV/℃
Linearity @Ip=0-±Ipn                  ≤0.5 %FS
Response time @50A/μS, 10%-90%          ≤5 μs
Galvanic isolation @ 50HZ,AC,1min              2.5 KV

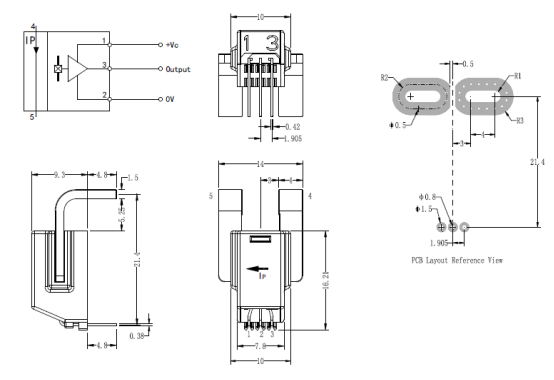

Mechanical dimension(for reference only) Note
K11TP Type Current Sensor-heyi 1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation: 1:+5V 2:GND 3:V0UT

General date Value Unit
Operating temperature(TA) -40 to +85
Storage temperature(TS) -40 to +125
Mass(approx) (M) 90 g
Pulse current signal response characteristic Effects of impulse noise
K11TP Type Current Sensor-heyi Noise Voltage

( Output signal )

K11TP Type Current Sensor-heyi ( Output voltage )
