TUV certified split core current transformer – DP



What is TUV certification? What are the benefits of TUV certification?



TUV mark is a safety certification mark customized by Germany’s TUV for component products, which is widely accepted in Germany and Europe. At the same time, when applying for the TUV mark, enterprises can apply for a CB certificate together, thereby obtaining certificates from other countries through conversion. Moreover, after the product passes the TUV certification , Germany’s TUV will recommend these products to rectifier manufacturers who come to inquire about qualified component suppliers; in the process of whole machine certification, all components with the TUV mark are exempt from inspection.







TUV certification purpose

The purpose of applying safety standards is to prevent personal injury and property loss caused by various dangers that may occur during the use of home appliances, mechanical products, and automotive products.
Including electric shock or electric shock, overheating or fire, mechanical dangers, radioactive hazards, and chemical hazards.







TUV certification standards

Home appliance regulations around the world are based on the IEC standard IEC60335.
Among them, the European standard is the closest to the international standard.
The European standard is divided into two parts: the first part EN60335-1 is the comprehensive requirements for home appliances; the second part EN60335-2 is the special requirements for various types of home appliances, and this part has dozens of standards.









TUV certified safety

The European electrical safety standard is EN60950, which is also the technical specification for the German TUV information product GS certification. For computer monitors, GS certification

It also includes EN50279 standard and ISO9241 series standard. Since the information product safety standards of all countries in the world are based on the IEC950 standard of the International Electrotechnical Commission, when companies apply for GS certification from TUV of Germany , they should pay attention to applying for safety certification from other countries at the same time.







What is the DP of current transformer under TUV certification?

















DP series



DP range Split  nuclear  Current The transformer has been designed Easily fit  About  cable No break in this Circuit. advantage of Big capacity and Big Install Hole  Size, can Used exist More Power applications. DP is used worldwide most strength app .



feature

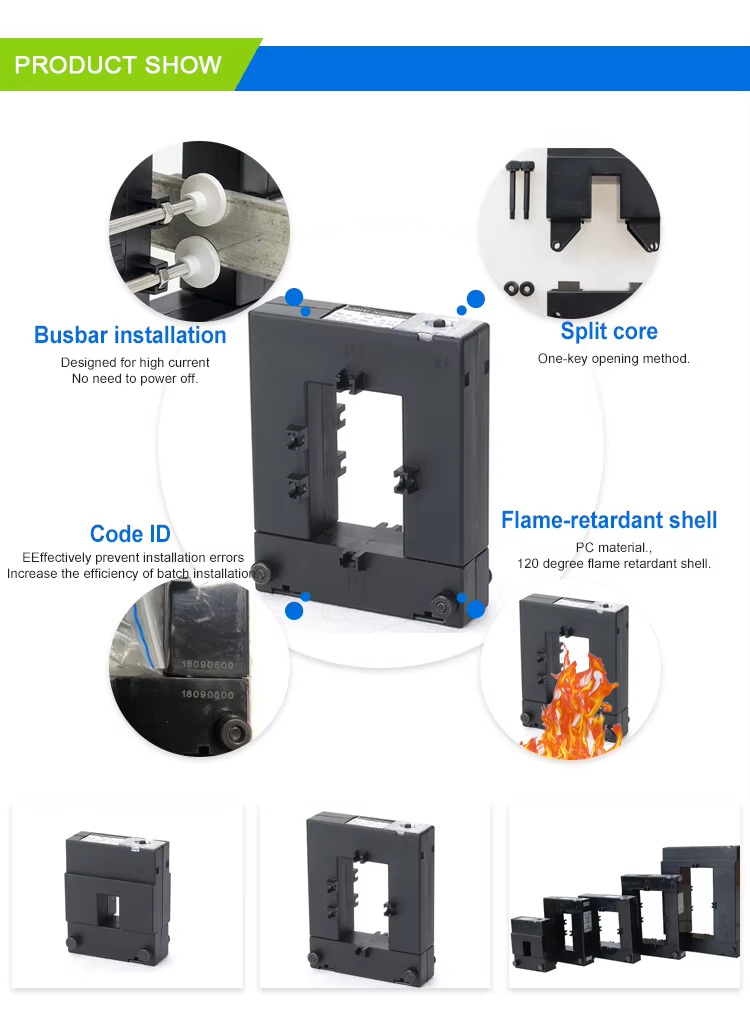

Twin Screw Fast, safe and convenient arrive Installation , portable with two built-in fixtures Method: Base; Busbar Installation

Wide inner window to clamp large cables or Busbar   Wide range of sizes to suit all existing Install .  Primary current from 5A to 6000A







Features:



Double screw fastening, safe, easy to install and carry.

Two built-in fixing methods: base; busbar mounting

Spacious window inner diameter: The DP series window has a large inner diameter of up to 160mm, which can be easily installed around cables or busbars of various sizes, ensuring compatibility with different conductors.

Customizable current ratio: Heyi Electric understands the unique needs of different applications. DP CT transformers have customizable current ratios that can be tailored to specific requirements, ensuring accurate and precise current measurement.

The primary current ranges from 5A to 5000A.

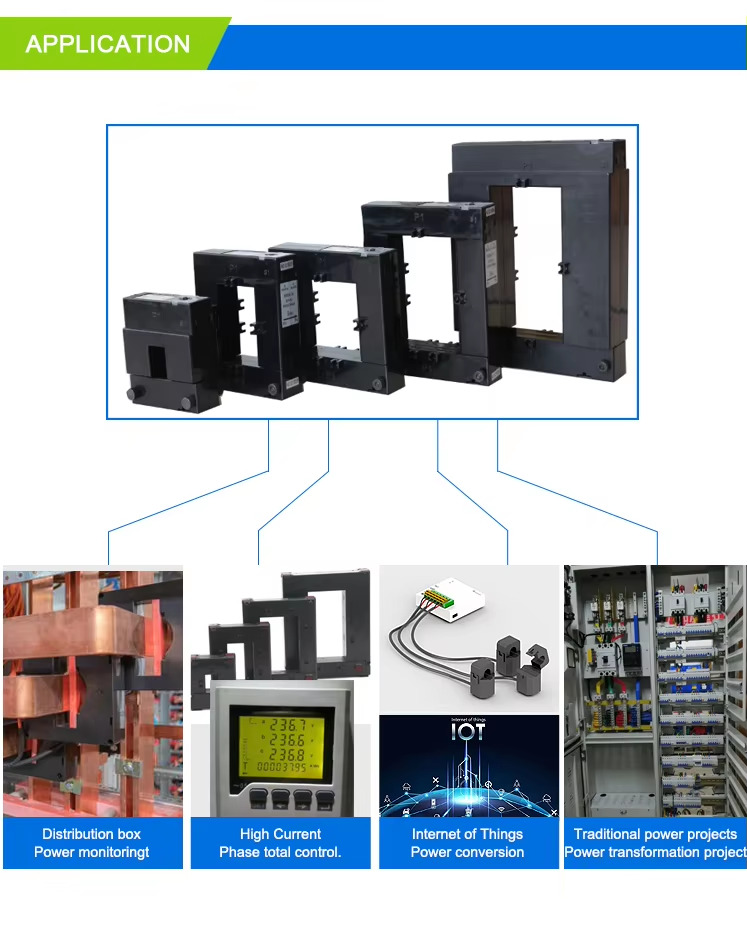

Application:





Power Distribution: DP CT transformers are widely used in power distribution systems to accurately measure current for load balancing, energy monitoring and power quality analysis.



Industrial Applications: The DP Series is well suited for a variety of industrial applications including motor control, motor and process monitoring, enabling effective current measurement and system protection.



Energy Management Systems: DP current transformers play a key role in energy management systems, providing accurate current measurement for demand-side management, energy optimization, and cost analysis.



Building Management: In building management systems, DP current transformers are used to monitor and control current in lighting systems, HVAC equipment and other electrical devices.



In summary, Heyi Electric’s split-core current transformer DP series provides a comprehensive solution for accurate current measurement. With an extended measurement range, spacious window inner diameter, customizable current ratio, and versatile applications in power distribution, industrial systems, energy management, and building management, the DP series provides a reliable, convenient, and adaptable solution for a variety of current measurement needs.
